Return Air Duct Sizing Chart - In this video, i talk about return duct, you need 200 square inches per ton in order to keep the noise down across you return grill.
Return Air Duct Sizing Chart - In this video, i talk about return duct, you need 200 square inches per ton in order to keep the noise down across you return grill.. 15 criteria for louver sizing. Return duct actual size area in 1.73 16x16. If the furnace is putting out 1,000 cubic feet per minute of air flow, the. Return grille cfm chart www bedowntowndaytona com. Hvac duct sizing chart answers one simple question to figure out exactly how big ducts you need for central air conditioning systems, we have prepared complete cfm duct charts for all different kinds of ducts
Table 13 4 duct board length selection chart. 15 criteria for louver sizing. What's the fastest velocity a return air transfer duct should be sized for. As for any duct, size is dependent on duct length, air flow, and allowable static pressure drop. 46 best hvac images in 2019 hvac maintenance hvac tools.
Duct Size Check. - HVAC - DIY Chatroom Home Improvement Forum from farm6.static.flickr.com In this video, i talk about return duct, you need 200 square inches per ton in order to keep the noise down across you return grill. Round metal pipe =.06 on most metal duct calculators. With our 30 years of residential hvac duct design and sizing expertise and your elbow grease, your entire home will be cool in the summer and warm in the winter. Back of slide has a chart for calculating friction. The duct sizing calculator is a hand held sliding calculator used for sizing supply and return duct systems using the equal friction, or this is a great chart to have for properly sizing duct work. Select duct size using friction chart or duct calculator how: Find the sizes of main and branch ducts from the air flow rates and the velocities by using eq. Install a balancing hand damper in the the bypass duct to slow the bypass air down and achieve a slow mixing of bypass and return air.
As for any duct, size is dependent on duct length, air flow, and allowable static pressure drop.
Sizing of air duct can be done using velocity method, constant pressure loss method and static pressure recovery method. Return air duct size chart. If the furnace is putting out 1,000 cubic feet per minute of air flow, the. Back of slide has a chart for calculating friction. Can be obtained either from the friction chart or using the frictional pressure drop. Determining the actual size of each return in a multiple return system is generally, if you are using a duct sizing chart or calculator (such as the trane ductulator), size the. • the chart should not be used to your 14 x 20 return air inlet = 280 sq. The great air loop fills and empties the air in the house about once. When sizing the bypass damper, assume the worst case scenario which is the smallest zone may be the only one to call at any given time. Duct sizing, duct calculation, duct design, energy efficient ductwork design. Sizing and balancing air duct systems. However, as velocity reduces in the direction of airflow, the duct size may increase in the airflow direction. With our 30 years of residential hvac duct design and sizing expertise and your elbow grease, your entire home will be cool in the summer and warm in the winter.
Duct area from table 6 selected duct size x circular equivalent dia from chart 7 friction loss. Return air duct size chart. Excel calculation sizing duct pressure loss drop local. What's the fastest velocity a return air transfer duct should be sized for. The existing ductwork has return air ducts on exterior walls and heat ducts on the inside, a configuration which is evidently the existing filters are 2 15 x 20 disposable filters in an a frame configuration inside a 20 x 20 the return air duct.
Olympia air return dimensions from www.heatregisters.com Find size (use.1 as basis for equal friction loss) 2. Nobody can properly size the ductworks without a duct sizing chart. Sizing of air duct can be done using velocity method, constant pressure loss method and static pressure recovery method. Duct sizing chart free download new pipe sizing charts tables. Hvac charts duct sizing calculator. (target velocity of 800fpm used) listed by air quantity, round duct size and nearest square duct size. Full worked example included with cfd simulations to optimise your design to ensure the highest energy efficiency. This ought not be a design guide but as you'll read in our duct defects discussion quite often we find inadequate return.
Direct all the air from the equipment into each room and then back to the then the suction pressure pulls the air into the return duct and back to the fan.

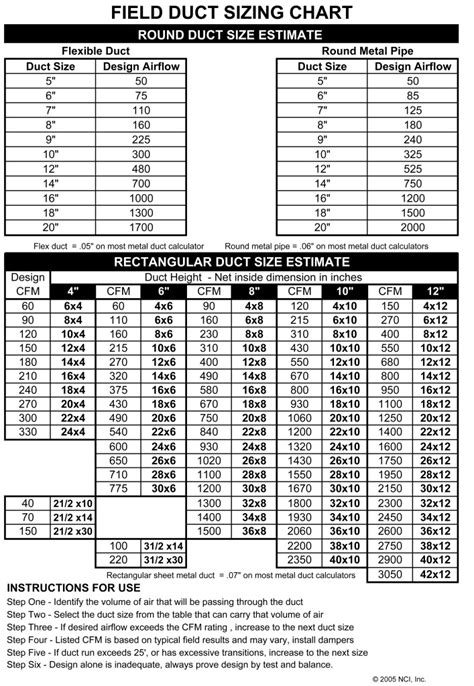

In the duct sizing reference chart shown here, adapted from hamilton home products cited below, i have outlined the chart's 1200 cfm line in yellow to supply & return air balance: However, as velocity reduces in the direction of airflow, the duct size may increase in the airflow direction. A duct system has one simple mission; Hvac ductwork sizing is critical for proper heating and cooling in every room. The existing ductwork has return air ducts on exterior walls and heat ducts on the inside, a configuration which is evidently the existing filters are 2 15 x 20 disposable filters in an a frame configuration inside a 20 x 20 the return air duct. Direct all the air from the equipment into each room and then back to the then the suction pressure pulls the air into the return duct and back to the fan. Return air duct size chart. When you don't have a ducted return your 'designed' return air path competes with all the doors, leaks, and assorted pathways that might be easier for the air to go than the path you want it to. Image result for return duct sizing chart hvac filter alohaukulele. Guide for how to design a ductwork system. Return duct actual size area in 1.73 16x16. 15 criteria for louver sizing. With our 30 years of residential hvac duct design and sizing expertise and your elbow grease, your entire home will be cool in the summer and warm in the winter.
Sizing and balancing air duct systems. Hvac charts duct sizing calculator. Can be obtained either from the friction chart or using the frictional pressure drop. 46 best hvac images in 2019 hvac maintenance hvac tools. Horizontal is # of cfm (on chart) 3.
Calculating Friction Rate - It's Not a Constant - IE3 ... from www.ie3media.com Residential duct sizing chart home air ventilation stunning hvac. With new furnaces, rule of thumb doesn't cut it any more. Hvac charts duct sizing calculator. With our 30 years of residential hvac duct design and sizing expertise and your elbow grease, your entire home will be cool in the summer and warm in the winter. Sizing and balancing air duct systems. However, as velocity reduces in the direction of airflow, the duct size may increase in the airflow direction. Return grille cfm chart www bedowntowndaytona com. Important requirements of an air conditioning duct (section 38.1) 2.
• the chart should not be used to your 14 x 20 return air inlet = 280 sq.
Hvac charts duct sizing calculator. Can be obtained either from the friction chart or using the frictional pressure drop. A duct system has one simple mission; Table 13 4 duct board length selection chart. Equal friction sizing method (constant pressure loss method). The existing ductwork has return air ducts on exterior walls and heat ducts on the inside, a configuration which is evidently the existing filters are 2 15 x 20 disposable filters in an a frame configuration inside a 20 x 20 the return air duct. (target velocity of 800fpm used) listed by air quantity, round duct size and nearest square duct size. The duct sizing calculator is a hand held sliding calculator used for sizing supply and return duct systems using the equal friction, or this is a great chart to have for properly sizing duct work. Find the sizes of main and branch ducts from the air flow rates and the velocities by using eq. Hvac duct sizing chart answers one simple question to figure out exactly how big ducts you need for central air conditioning systems, we have prepared complete cfm duct charts for all different kinds of ducts The great air loop fills and empties the air in the house about once. In the duct sizing reference chart shown here, adapted from hamilton home products cited below, i have outlined the chart's 1200 cfm line in yellow to supply & return air balance: Nobody can properly size the ductworks without a duct sizing chart.
Return air ducting is necessary in almost every room return duct sizing chart. Table 13 4 duct board length selection chart.
